Powered Air Purifying Respirator (PAPR)

MSA OptimAir TL with Loose Fitting Hood

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES Training Requirements Assigned Protection Factor per BP-RPP-00014/ 490/09, Schedule 2
702962 10081116

OptimAir TL respirator PAPR kit for a loose-fitting hood

spec spec QUAL 22757
•7016 - Respiratory Protection
•24643 - Medical Assessment -NON SCBA
•69517- MSA OptimAir TL JPM
25
730938 10095740

Loose fitting hood, single bib (one size fits all)

spec spec QUAL 22757
•7016 - Respiratory Protection
•24643 - Medical Assessment -NON SCBA
•69517- MSA OptimAir TL JPM
25

MSA Optimair TL Cartridges

MFG CARTRIDGE NAME FOR USE WITH PROTECTS AGAINST ITEM NUMBER MFG AND PART # PICTURE SPEC NOTES
MSA P100 Filter OptimAir TL PAPR

Particulates

731964 10154877 spec
MSA P100/OV/AG Filter Cartridge OptimAir TL PAPR

Particulates, Organic Vapours, Acid Gases

702969 10080454 spec

OptimAir TL Accessories. Note: Additional parts/ accessories are available in Maximo.

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES Training Requirements Assigned Protection Factor per BP-RPP-00014/ 490/09, Schedule 2
703069 MSA OptimAir TL PAPR Hose

Weight: 0.210 KG (0.463 LB)

spec spec
480590 MSA Welders Face Piece

Face, piece, Welders, 4-1/2" X 5-1/4" Lens Cover, Polycarbonate, Less Filter Plate, With Clipon Adapter, For Use With with Ultratwin Respirators, 4-1/2" X 5-1/4"

spec
806530 MSA Weld Adapter

MSA Spacer to install passive lens into weld adapter for the 4100 Advantage masks, PPE
Compatible Item #337520 is a passive welding lens and Item 702998 is the welding Adapter for the Advantage 4100 full face mask.

spec
702998 MSA Clip-On Adapter

Polycarbonate Clip-On Welders Adapter with Cover Lens for Advantage 4100.

spec spec
730382 MSA Frame for RX Lens

Frame for RX lenses used with MSA Advantage 4000 full face respirator. Individual will need to take the frame to Optician for prescription lens.

spec spec
730382 MSA Passive Welding Lens

Passive lens, welding, SH10, Elite, Black. Use with MSA welder adapter (Item #702998) and Advantage 4100 full face respirator.
Passive Welding Lens for Full Face Respirator Welding Attachment

spec

3M Versaflo TR 600 / M407SG Welding Helmet Assembly

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES Training Requirements Assigned Protection Factor per BP-RPP-00014/ 490/09, Schedule 2
808619 3M™ Versaflo™ TR-616N

Versaflo PAPR Assembly includes
Motor/Blower(TR-602N), High Capacity
Battery (TR-632), length adjustable
breathing tube (BT-30), High Durability Belt
(TR-626), Airflow Indicator (TR-971)

spec spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808622 3M™ Versaflo™ 3M™ Versaflo™

4-Station battery charger for 3M Versaflo
PAPR battery (For use with Versaflo PAPR Assembly (item 808619)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808620 3M™ Versaflo™ M-407SG

Versaflo Respiratory Helmet Assembly with
Flame resistant shroud and Speedglass
welding shield (no ADF). To be used with
Versaflo PAPR Assembly TR-616N (Item
#808619) and ADF (Item #808621)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808621 3M™ Speedglas™ 06-0000-30i-CA

Speedglass Auto-darkening Filter 9100XXi
(includes ADF, inside and outside
protection plates). To be used with
Versaflo PAPR Assembly TR-616N (Item
#808619) and M407SG Welding Helmet
Assembly (Item #808620)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808625 3M™ Versaflo™ TR-6710N-5

Versaflo HE Filter for TR-616N (Item
#808619)
5/case

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808623 3M™ Versaflo™ TR-6700FC

Versaflo Filter Cover to be used with Versaflo PAPR Assembly TR-616N (Item 808619) and HE Filter (Item#808625)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808627 3M™ Versaflo™ TR-662

Spark Arrester to be used with Versaflo
PAPR Assembly TR-616N (Item #808619)
2/case

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808619 3M™ Versaflo™ TR-616N

Versaflo PAPR Assembly includes
Motor/Blower(TR-602N), High Capacity
Battery (TR-632), length adjustable
breathing tube (BT-30), High Durability Belt
(TR-626), Airflow Indicator (TR-971)

spec spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808621 3M™ Speedglas™ 06-0000-30i-CA

Speedglass Auto-darkening Filter 9100XXi
(includes ADF, inside and outside
protection plates). To be used with
Versaflo PAPR Assembly TR-616N (Item
#808619) and M407SG Welding Helmet
Assembly (Item #808620)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808620 3M™ Versaflo™ M-407SG

Versaflo Respiratory Helmet Assembly with
Flame resistant shroud and Speedglass
welding shield (no ADF). To be used with
Versaflo PAPR Assembly TR-616N (Item
#808619) and ADF (Item #808621)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808622 3M™ Versaflo™ 3M™ Versaflo™

4-Station battery charger for 3M Versaflo
PAPR battery (For use with Versaflo PAPR Assembly (item 808619)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808623 3M™ Versaflo™ TR-6700FC

Versaflo Filter Cover to be sued with
Versaflo PAPR Assembly TR-616N (Item
808619) and HE Filter (Item#808625)

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808625 3M™ Versaflo™ TR-6710N-5

Versaflo HE Filter for TR-616N (Item
#808619)
5/case

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25
808627 3M™ Versaflo™ TR-662

Spark Arrester to be used with Versaflo
PAPR Assembly TR-616N (Item #808619)
2/case

spec QUAL 29576
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 71603 JPM
25

GenTex Pureflo

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES Training Requirements Assigned Protection Factor per BP-RPP-00014/ 490/09, Schedule 2
818672 GENTEXCORP PR05814-B-2A1-NBC

RESPIRATOR-PAPR HELMET, HEAD-MOUNTED BLOWER, APPROVED FOR WELDING, PUREFLO ESM+ WELDING, NEXGEN AUTO DARKENING FILTER LENS

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
1000
818674 GENTEXCORP PR05814-B-0A1-NBC

RESPIRATOR-PAPR HELMET, HEAD-MOUNTED BLOWER, PUREFLO ESM+

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818713 GENTEXCORP 433550SP

RESPIRATOR-REPLACEMENT PARTS, PAPR HELMET, PUREFLO ESM+, TYCHEM SINGLE USE QC NECK CAPE (40/PK)

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818685 GENTEXCORP PR02020SP-MP

RESPIRATOR-CARTRIDGE, PAPR HELMET, PUREFLO ESM+, HE P100, (64/PK)

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818689 GENTEXCORP PR02475SP

RESPIRATOR-REPLACEMENT PARTS, PAPR HELMET, PUREFLO ESM+, STEDPRENE REUSEABLE NECK CAPE (2/PK)

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818693 GENTEXCORP PR01600SP

RESPIRATOR-REPLACEMENT PARTS, PAPR HELMET, PUREFLO ESM+, QUICK RELEASE HEADBAND ASSEMBLY

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818695 GENTEXCORP PR01605SP-BP

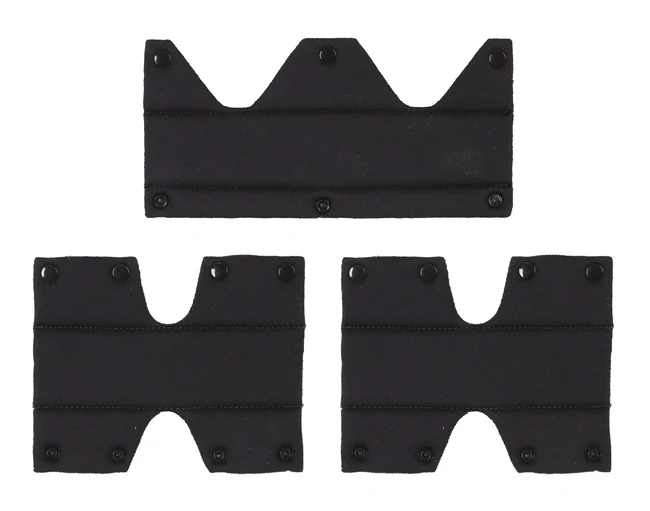

RESPIRATOR-REPLACEMENT PARTS, PAPR HELMET, PUREFLO ESM+, COMFORT PADS FOR HEADBAND ASSEMBLY

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818696 GENTEXCORP PR02042SP

RESPIRATOR-BATTERY CHARGER, PAPR HELMET, PUREFLO ESM+, 16 BANK BATTERY CHARGER

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818697 GENTEXCORP PR05806SP

RESPIRATOR-REPLACEMENT PARTS, PAPR HELMET, PUREFLO ESM+, BATTERY, NIMH

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818699 GENTEXCORP PR02098-11

RESPIRATOR-HOOD, PAPR HELMET, PUREFLO ESM+, OREX FR HOOD

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818702 GENTEXCORP PR02098-12

RESPIRATOR-HOOD, PAPR HELMET, PUREFLO ESM+, XPOSURE GUARD HOOD

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818704 GENTEXCORP PR02510SP

RESPIRATOR-REPLACEMENT PARTS, PAPR HELMET, PUREFLO ESM+, VISOR (4/PK)

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818707 GENTEXCORP PR02054SP

RESPIRATOR-SANITARY WIPES, PAPR HELMET, PUREFLO ESM+, SANITARY WIPES (100/PK)

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818711 GENTEXCORP PR02128SP

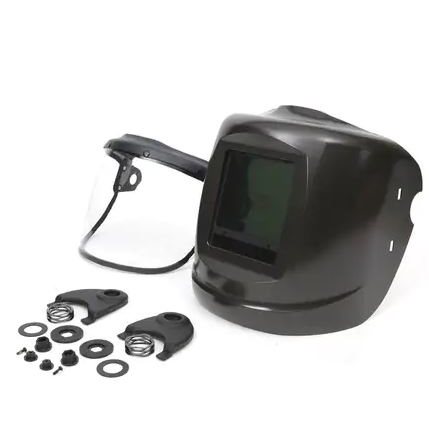

RESPIRATOR-REPLACEMENT PARTS, APPROVED FOR WELDING, PAPR HELMET, PUREFLO ESM+ WELDING, WELDING SHIELD ASSEMBLY, NEXGEN AUTO DARKENING FILTER LENS

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
818712 GENTEXCORP PR01545SP

RESPIRATOR-REPLACEMENT PARTS, PAPR HELMET, PUREFLO ESM+, VISOR PROTECTOR

spec spec spec QUAL 30776
•PEL 7016 CBT
•PEL 24643 Medical
•PEL 72267 JPM
•PEL 72332 POP
