Self-Retracting Devices

SRL (TYPE 1)

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES
823897 MTL-OHS1-07/9FT - Honeywell

9 ft. (2.74 m) Retractable Webbing, with Carabiner and SwivelShackle, Double Locking Snap Hook, Miller

spec spec
725891 63032-00NCA - MSA

6.5 ft. (2 m) Latchways Arc Flash PFL, single-leg, aluminum triple-lock carabiner, Clear

NOTE: This product (Arc Flash PFL) has a Service Life of 5 years which was derived from the abrasion resistance of the webbing material.

spec spec
821605 TRACBLOC2 - Tractel

8 ft. (2.4 m) TracBloc2 self-retracting lifeline with two arms, 3 ⁄4 in. (20 mm) self-locking snap hook at shock pack and 2-1 ⁄2 in. (64 mm) self-locking polished aluminum snap hooks at both arm end.

spec spec

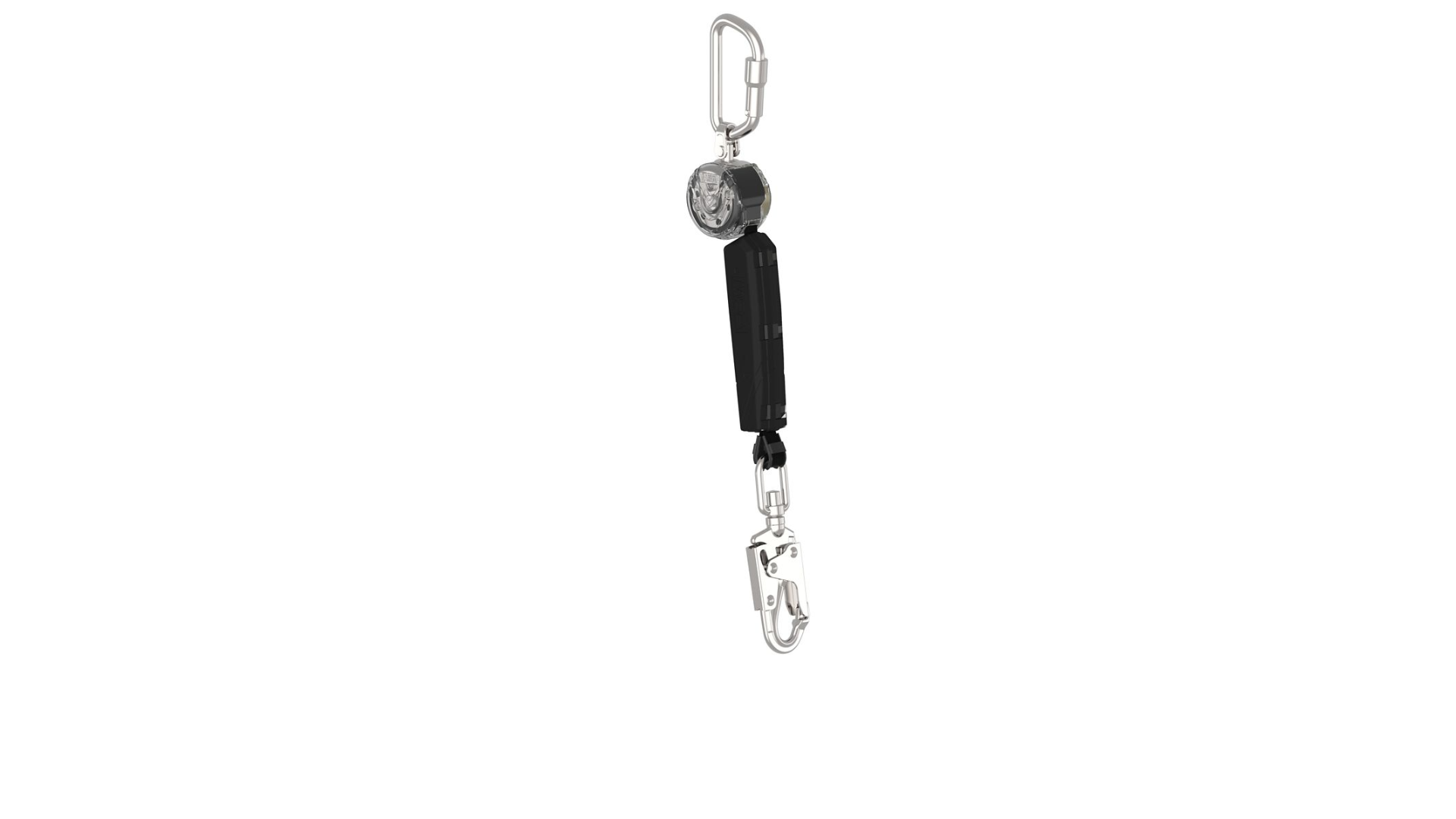

824983 VTOHW-011-DA-C - MSA

6 ft. (1.8m) V-TEC Personal Fall Limiter, 6', Single-Leg, large aluminum snaphook, aluminum triple action carabiner (top), CSA Z259.2.2-17, STAINLESS STEEL & PLASTIC Polycarbonate Housing, 130-310 lbs 60-140kg

spec spec
824982 VTOHW-012-RA-Cv - MSA

6 ft. (1.8 m) V-TEC Personal Fall Limiter, 6', Twin-Leg , large aluminum snaphook, twin link triple action carabiner (top), CSA Z259.2.2-17, STAINLESS STEEL & PLASTIC Polycarbonate Housing, 130-310 lbs 60-140kg

spec spec

SRL (TYPE 2)

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES
691896 34000902C - 3M

50 ft. (15 m) 3/16 S/S Wire Rope with S/S Hook, Retractable Lifeline, DBI-SALA

spec spec
813445 63206-00ACA - MSA

20 ft. (6.1 m) SRL, V-TEC, Galvanized Cable Completely field-serviceable with minimal components. Spiral radial energy-absorbing technology requires zero calibration or adjustment. Retraction dampening features controls the cable speed to 3m/s. 20ft.(6m) length. High-impact, clear polycarbonate housing simplifies pre-use inspection. Fully rotating attachment point for complete user mobility. Galvanized cable Steel Swivel Snaphook CSA Z259.2.2-17 Type SRL, 130 - 310lb worker capacity

spec spec
813469 63215-00ACA - MSA

50 ft. (15 m) SRL, V-TEC, Galvanized Cable Completely field-serviceable with minimal components. Spiral radial energy-absorbing technology requires zero calibration or adjustment. Retraction dampening features controls the cable speed to 3m/s. 50ft.(15m) length. High-impact, clear polycarbonate housing simplifies pre-use inspection. Fully rotating attachment point for complete user mobility. Galvanized cable Steel Swivel Snaphook CSA Z259.2.2-17 Type SRL, 130 - 310lb worker capacity.

spec spec

SRL-R (TYPE 3)

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES
512517 3400920C - 3M

50 ft. (15 m) 3/16 Steel Cable, Retractable Lifeline c/w Retrieval Winch DBI-SALA

spec spec
512521 3400875 - 3M

85 ft. (25 m) 3/16 Steel Cable, Retractable Lifeline c/w Retrieval Winch DBI-SALA

spec spec
512523 3403602 - 3M

130 ft. (39 m) 3/16 Steel Cable, Retractable Lifeline c/w Retrieval Winch DBI-SALA

spec spec

SRL-LE (Leading Edge)

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES
726067 63406-00ACA - MSA

20 ft. (6.1 m) SRL, V-Edge, Galvanized Cable Specifically engineered and tested for use at foot-level tie off & leading edge

spec spec
726117 10192040 - MSA

8 ft. (2.4 m) Single Leg, PFL, V-EDGE, WEB SRL, 36CS Swivel Snaphook, CSA, Harness Connection: Locking Pin Specifically ,Engineered for use in overhead and foot-level tie off points Meets CSA Z259.2.2-17 Leading Edge Requirements

spec spec
813473 63415-00ACA - MSA

50 ft. (15 m) SRL, V-EDGE, Galvanized Cable Completely field-serviceable with minimal components Spiral radial energy absorbing technology requires zero calibration or adjustment Retraction dampening features controls the cable speed to 3m/s 50ft.(15m) length High-impact, clear polycarbonate housing simplifies pre-use inspection Fully rotating attachment point for complete user mobility Galvanized cable, Steel Swivel Snaphook CSA Z259.2.2-17 Type SRL-LE, 130-310 lb Capacity.

spec spec
825195 84108TP5 - Fall Tech

8 ft. (2.4 m) SRL, Personal, FT-X, EdgeCore, Twin Leg

spec spec

No Purchase

ITEM NUMBER MFG AND PART # DESCRIPTION PICTURE SPEC MANUAL NOTES
The following equipment is set to “No Purchase”. Continued use of existing inventory until such time as these units have reached life expectancy (as per BP-SM-00001, Fall Protection) or have failed an inspection.
718113 63011-OOECA - MSA

6 ft. (1.8 m) Single Leg, V-Tec, Mini, High-Impact Polycarbonate Housing with 36CS Snaphook, Steel Carabiner (Top)

spec spec
724412 63111-00A - MSA

6 ft. (1.8 m) Twin Leg, V-TEC Mini PFL, AL36CL Scaffold Snaphooks
Note: Replacement Twin Leg Connector Item Number 815434 - Located under Accessories

spec spec spec
726116 10192010 - MSA

8 ft. (2.4 m) Twin Leg, PFL, V-EDGE, WEB SRL, AL36CL Snaphook, CSA, Harness Connection: Locking Pin Specifically , Engineered for use in overhead and foot-level tie off points Meets CSA Z259.2.2-17 Leading Edge Requirements.

spec spec spec
544302 FP0304 - North

8 ft. long, 1-3/4” wide, Retractable Webbing, Nylon, Swivel Double Locking Snap Hook and Self-Locking Carabiner, North

spec spec
550332* NN-25C - Norguard

25 ft. long, 3/16 Dia. Galvinized cable, Retractable Lifeline, Norguard

spec spec
547705* NN-50CR - Norguard

50 ft. long, 3/16” Dia., galvanized cable, Retractable Lifeline C/W Retrieval Winch, Norguard

spec
547706* 47706* - Norguard

85 ft. long, 3/16” Dia., galvanized cable, Retractable Lifeline C/W Retrieval Winch,Norguard

spec
699252 3504451C - 3M

TYPE 2:
50 ft. Long x 3/16" Diameter, Stainless Steel Wire Rope with Hook, Ultra-Lok Self-Retracting Lifeline, DBI-SALA

spec
552583 PFL-4-Z7/9FT - Honeywell

9 ft. (2.74 m) Retractable Webbing, with Carabiner and SwivelShackle, Double Locking Snap Hook, Miller

spec spec spec
